YOUR PARTNER FOR FLOW TECHNOLOGY

LANGUAGE: EN  DE


FLOWMETERS AND DISPLAYS FOR OIL

DURCHFLUSSMESSER & -ANZEIGER FÜR ÖL

i FOR MORE INFORMATION ABOUT A SPECIFIC PRODUCT CLICK ON THE CORRESPONDING PRODUCT NAME

TYPE SERIES

MEASURING RANGE (L/MIN)

MAX. PRESSURE
(BAR)

TEMPERATURE
(°C)

INDUSTRIES


FROM

TO

FROM

TO

MIN.         MAX.

WATERTREATMENT

POWERGENERATION

MACHINERY&PLANTCONSTRUCTION

PROCESSENGINEERING

WATER

TREATMENT

POWER

GENERATION

MACHINERY

CONSTRUCTION

PROCESS

ENGINEERING

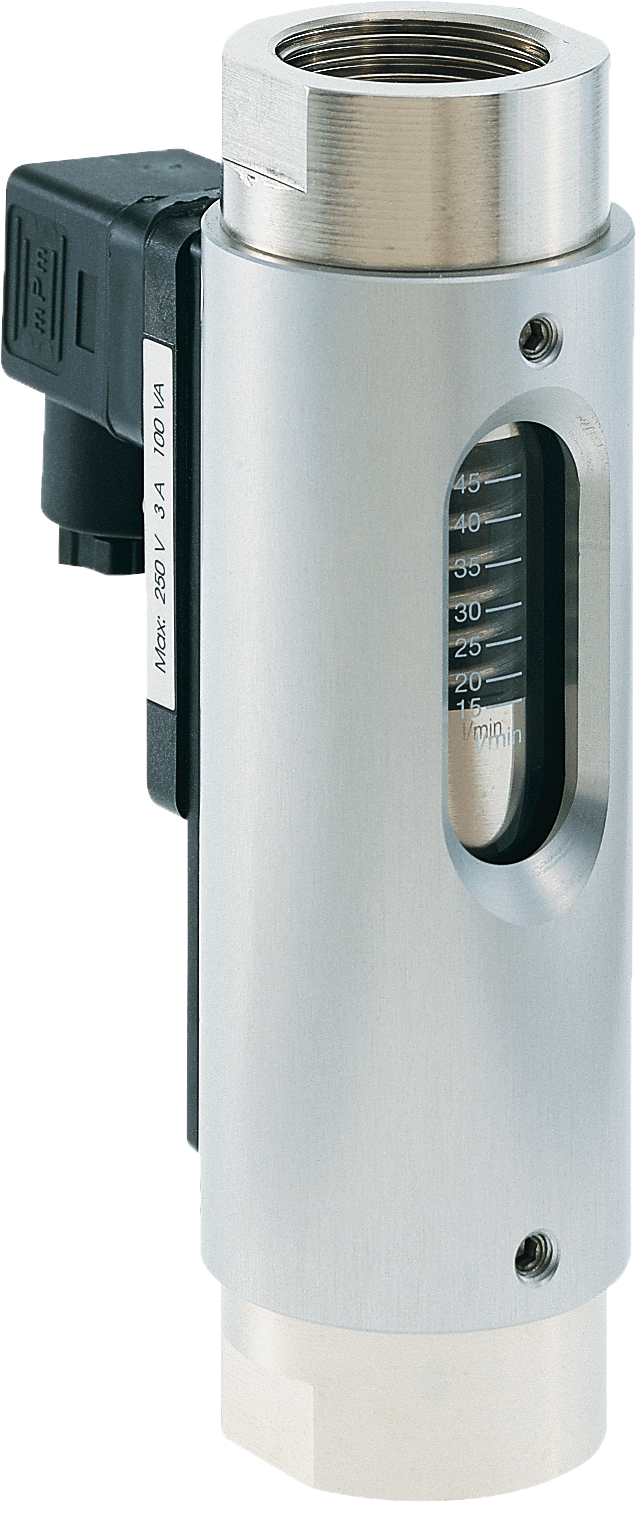

DKG-1

DKG-1

0,1

90

.

10

For viscous media (0,1 - 90 l/min)

max. operating pressure:
PN 10 bar

Operating temperature:
from -20°C to 120°C (optional -20°C to 160°C)

-20

120

✓

✓

✓

✓

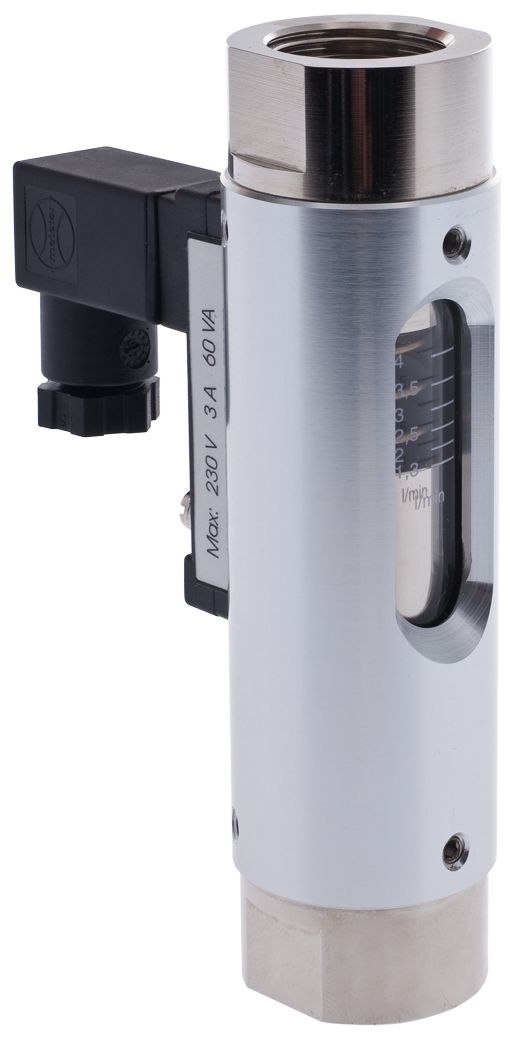

DKG-2

DKG-2

0,5

8

For viscous media
(0,5 - 8 l/min)

max. operating pressure:
PN 16 bar

Operating temperature:
from -20°C to 120°C (optional -20°C to 160°C)

.

16

-20

120

✓

✓

✓

✓

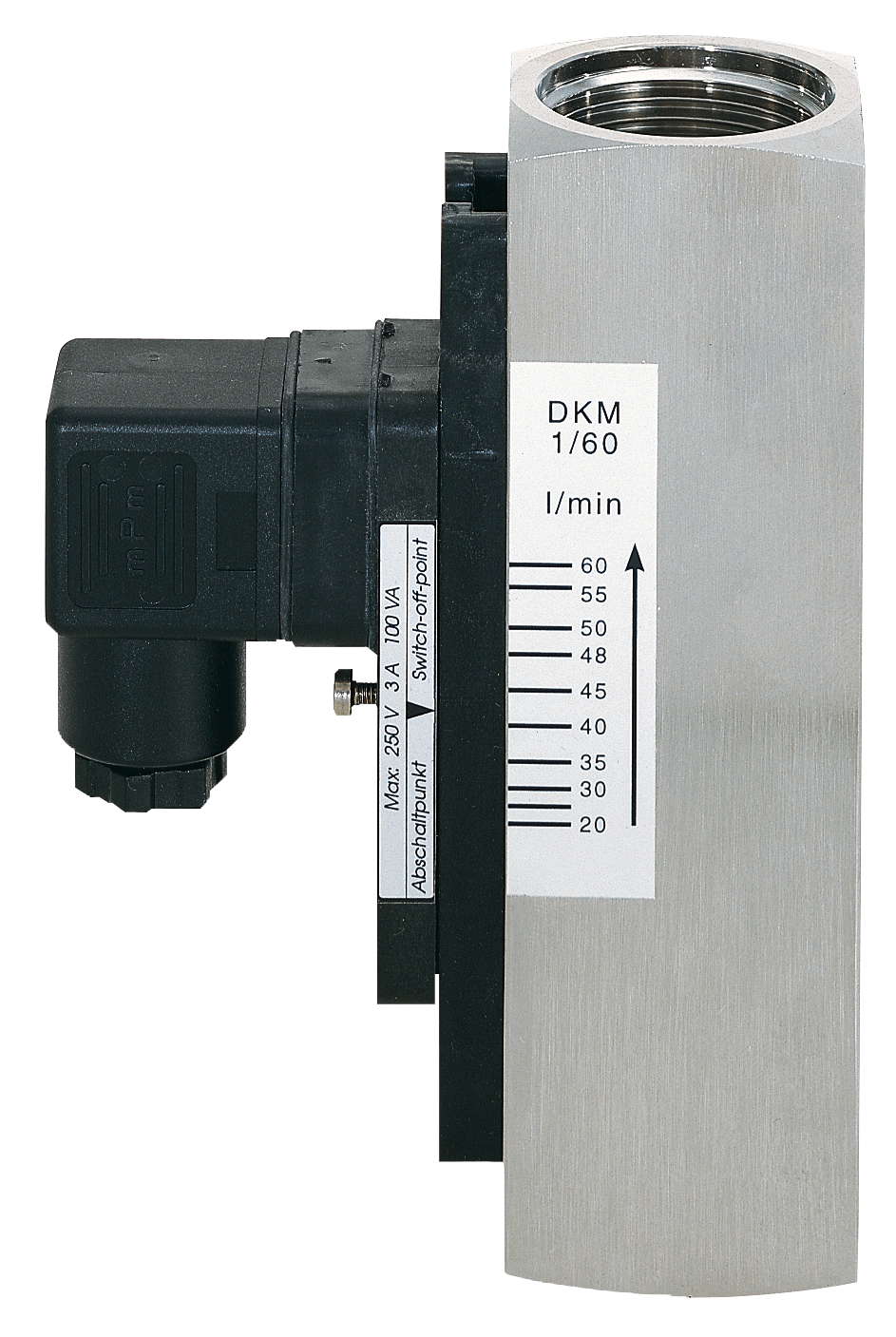

DKM-1

DKM-1

For viscous media

(0,5 - 110 l/min)

max. operating pressure:

PN 250 bar (MS) / PN 300 bar (VA)

Operating temperature:

from -20°C to 120°C
(optional -20°C to 160°C)

0,5

110

250

300

-20

120

✓

✓

✓

✓

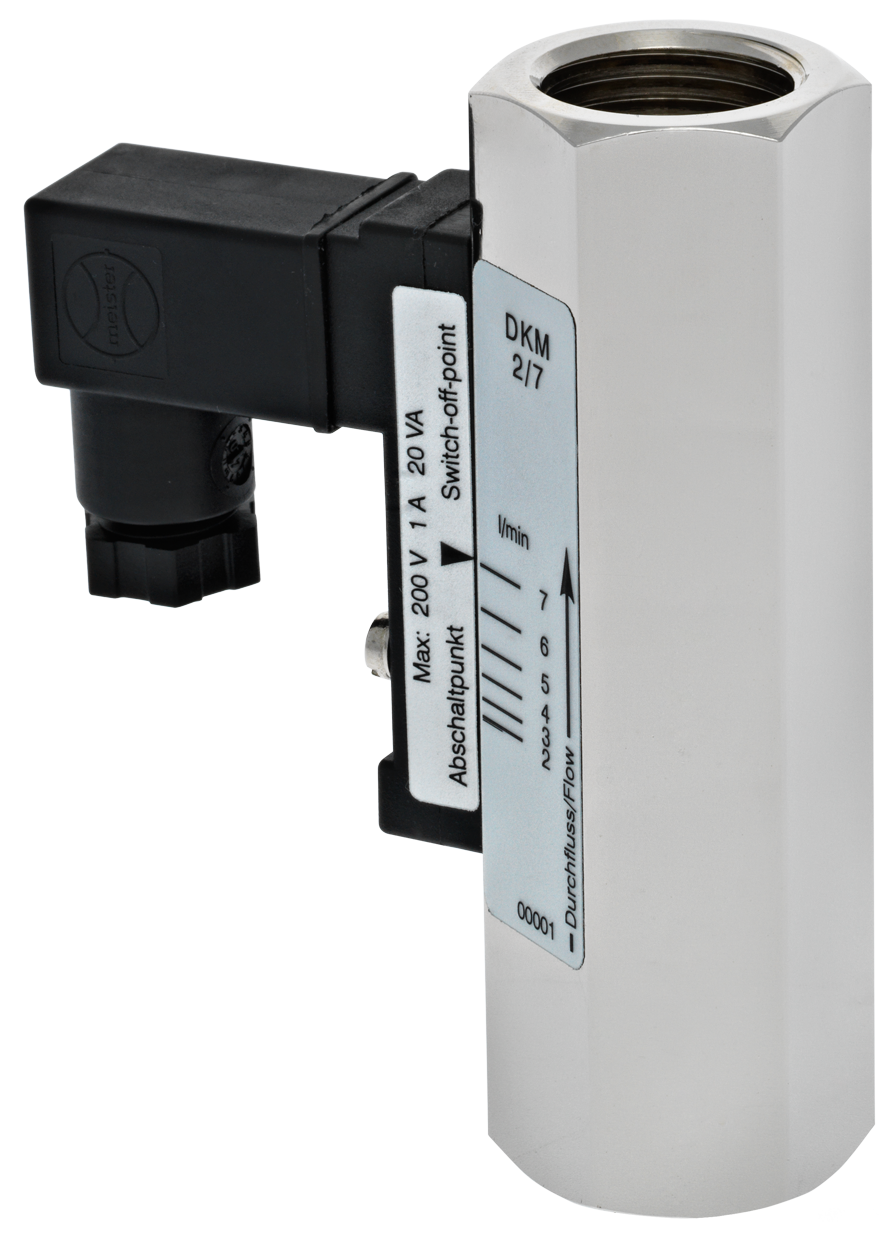

DKM-2

DKM-2

For viscous media (0,5 - 7 l/min)

max. operating pressure:

PN  300 bar (MS) / PN 350 bar (VA)

Perating temperature:

from -20°C to 120°C (optional -20°C to 160°C)

0,5

7

300

350

-20

120

✓

✓

✓

✓

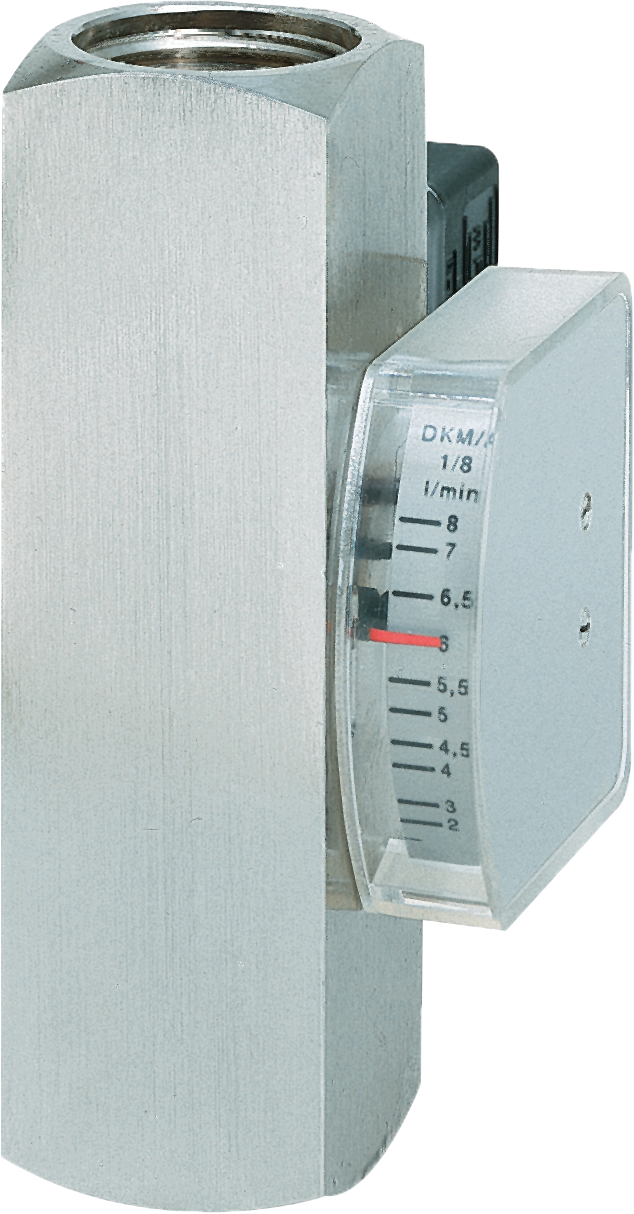

DKM/
A-1

DKM/
A-1

0,5

110

For viscous media
0,5 - 110 l/min)

max. operating pressure:

PN  250 bar (MS) / PN 300 bar (VA)

Operating temperature:

from -20°C to 120°C
(optional -20°C to 160°C)

250

300

-20

120

✓

✓

✓

✓

DKM/
A-2

DKM/
A-2

0,5

For viscous media
(0,5 - 7 l/min)

max. operating pressure:

PN 300 bar (MS) / PN 350 bar (VA)

Operating temperature:

from -20°C to 120°C (optional -20°C to 160°C)

7

300

350

-20

120

✓

✓

✓

✓

DKME-1

DKME-1

1

80

For viscous media
(1 - 80 l/min)

max. operating pressure:

PN  250 bar (MS) / PN 300 bar (VA)

Operating temperature:

from -20°C to 120°C
(optional -20°C to 160°C)

250

300

-20

120

✓

✓

✓

✓

DKME/
A-1

DKME/
A-1

For viscous media
(1 - 80 l/min)

max. operating pressure:

PN  250 bar (MS) / PN 300 bar (VA)

Operating temperature:

from -20°C to 120°C
(optional -20°C to 160°C)

1

80

250

300

-20

120

✓

✓

✓

✓

COVOL

COVOL

For fluids (0,42 - 1000 l/min)

For viscous media (0,42 - 1000 l/min)

max. operating pressure:
PN 10 bar / PN 16 bar

Operating Temperature
from 0°C to 45°C (optional -40°C to 150°C)

0,42

1.000

10

16

-40

150

✓

✓

✓

✓
