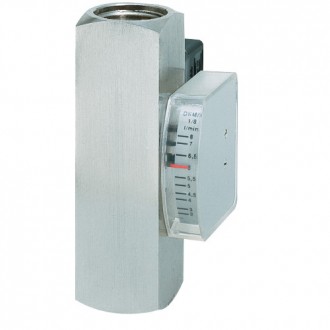

DKM/A-1
FLOW MONITOR AND INDICATOR FOR OIL
CAN BE COMBINED WITH OUR SENSORS SIGNAL 4.0, SIGNAL 4.0 IO PRO AND MONITOR 4.0
viscosity compensated
high operating pressure
installation in any orientation
Operation:
The flow monitors and indicators type DKM/A-1 operate with the float measuring principle.
SPECIFICATIONS
for viscous media(0,5 - 110 l/min)
max. operating pressure:
PN 100 bar (brass lead-free)PN 300 bar (stainless steel)
operating temperature:
from -20°C to 120°C(optional -20°C to 160°C)
DOCUMENTS
(Click on the name to download directly)
DATASHEET
MANUAL BASICS
MANUAL ATEX
DIRECTIVES
EU DECLARATION OF CONFORMITY RICHTLINIE 2014/34/EU
MANUFACTURER'S DECLARATION ATEX
EMC-DIRECTIVE 2014/30/EU
LOW VOLTAGE DIRECTIVE 2014/35/EU
